Detectors of Diameter-measuring Series

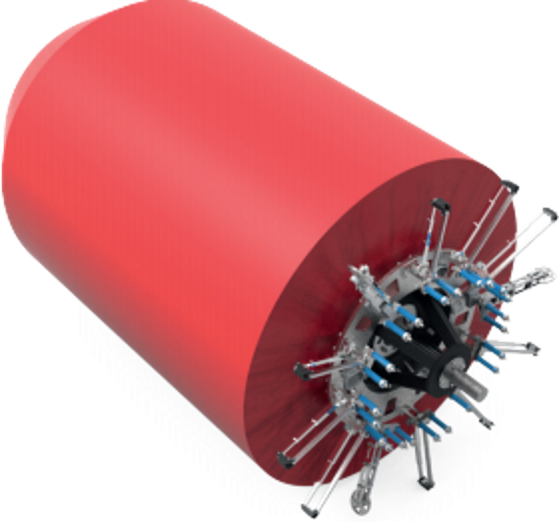

MECHANICAL CALIPER DETECTOR

◉ Pressurerange:0～10MPa
◉ Rangeof operating temperature:-10～80℃
◉ The distance between circumferential sensors:≤40mm
◉ Passing through capacity of elbow:the radius of curvature of the elbow that can pass through: ≥ 1.5DN.
◉ Passing through deformation capacity:The deformation capacity of the straight pipe section that pass through:≤20%OD
◉ Workingtime:more than 100 hours of continuous workingtime

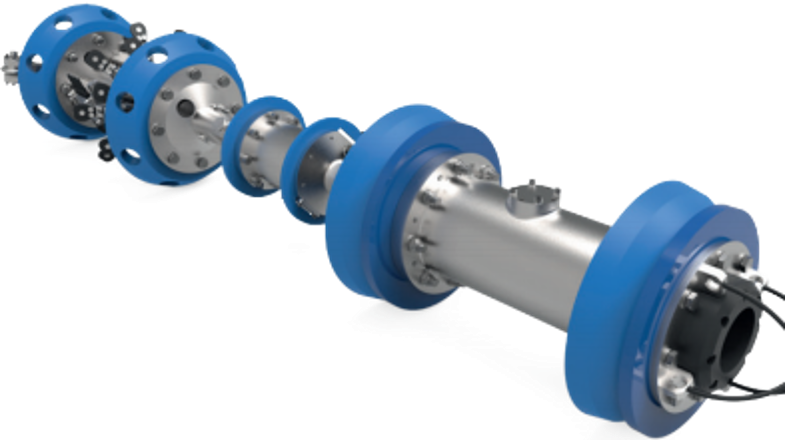

FLEXIBLE BODY DIAMETER DETECTO

◉ Pressurerange:0～10MPa
◉ Rangeof operating temperature:-10～80℃
◉ The distance between circumferential sensors:≤40mm
◉ Passing through capacity of elbow:the radius of curvature of the elbow that can pass through: ≥ 1.5DN.
◉ Passing through deformation capacity:The deformation capacity of the straight pipe section that pass through:≤35%OD
◉ Workingtime:more than 60 hours of continuous workingtime
◉ Positioning accuracy: The distance error between the feature and the reference Circumferential weld: ±0.1m; circumference direction: ±5°
