Detectors of Diameter-measuring Series

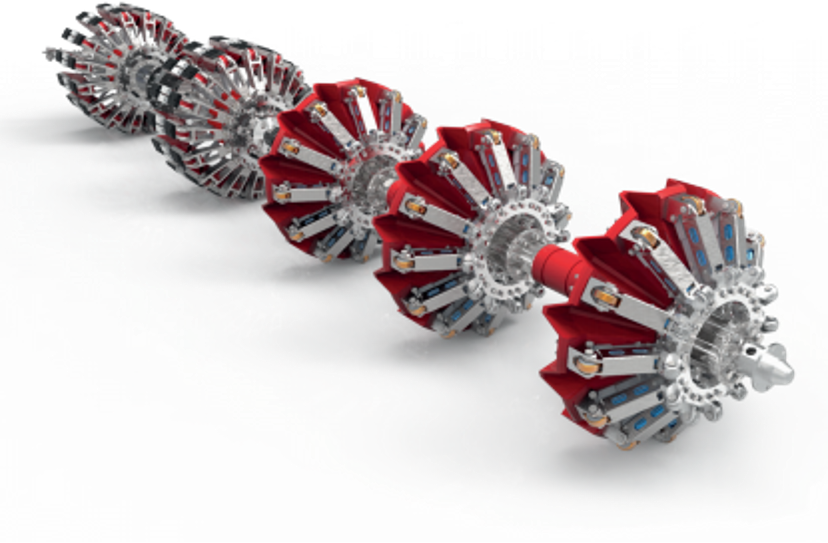

ULTRA-HIGH-DEFINITION
MAGNETIC LEAKAGE DETECTOR
◉Pressure range: 0 ～ 10MPa
◉Range of operating temperature: -10 ～ 80℃
◉Passing-through capacity of elbow: the radius of curvature of the elbow that can pass through: ≥ 1.5DN.
◉Passing-through deformation capacity: The deformation capacity of the straight pipe section that passes through is no more than 15%OD.
◉Positioning accuracy: The distance error between the feature and the reference circumferential weld: ±0.1m; circumference direction: ±5°

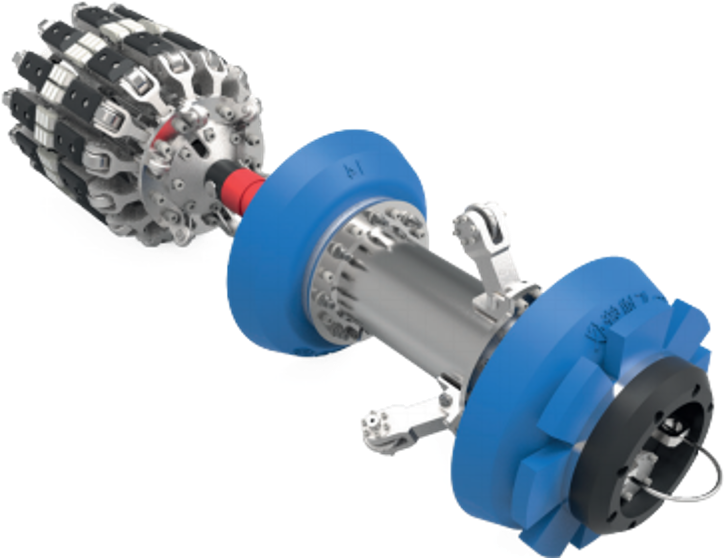

LARGE VARIABLE DIAMETER MAGNETIC LEAKAGE DETECTOR
◉ Pressure range: 0 ～ 10MPa
◉ Range of operating temperature: -10 ～ 80℃
◉ Passing-through capacity of elbow: the radius of curvature of the elbow that can pass through: ≥ 1.5DN.
◉ Passing-through deformation capacity: The deformation capacity of the straight pipe section that pass through: ≤ 40%OD.
◉ Working time: more than 80 hours of continuous working time
◉ Positioning accuracy: The distance error between the feature and the reference circumferential weld: ±0.1m; circumference direction: ±5°

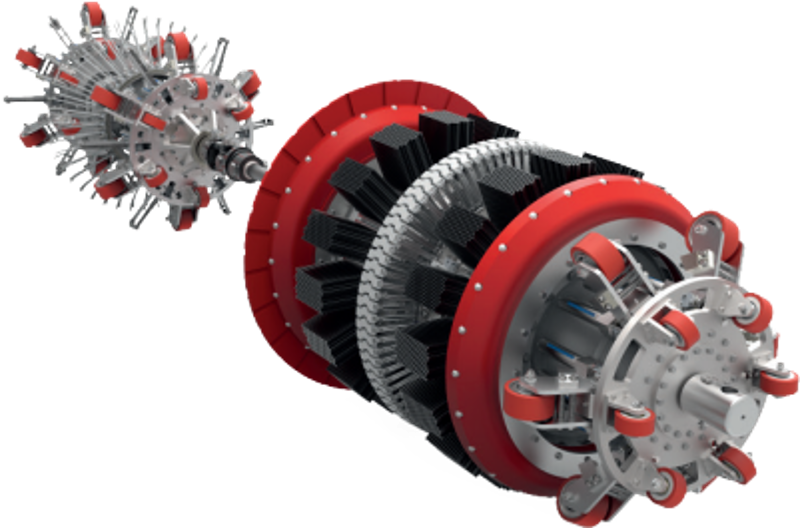

LOW FRICTION LEAKAGE MAGNETIC DETECTOR
◉ Pressurerange:0～10MPa
◉ Rangeof operating temperature:-10～80℃
◉ Passing through capacity of elbow:the radius of curvature of the elbow that can pass through: ≥ 1.5DN.
◉ Passing through deformation capacity:The deformation capacity of the straight pipe section that pass through:≤20%OD
◉ Workingtime:more than 60 hours of continuous workingtime
◉Positioning accuracy: The distance error between the feature and the reference circumferential weld: ±0.1m; circumference direction: ±5°
